Thermal Imager DT 9875

9873 160x120 Thermal Imager is basic one only with full IR, 9875/9877 160x120 High Performance Thermal Imager is esay to help you to find the potential problems with innovation features and functionality, you can perform infrared inspections faster and more efficiently and thoroughly document problem areas for additional following:
Description

Key features:

  • 160x120 High Performance Thermal Imager with high resolution TFT color LCD display
  • Professional IR-optical focus system ensures that images are in good focus for optimum image clarity and scanning convenience.
  • Capture additional measurements fast and conveniently with wireless modules (9877 only)
  • Meterbox analysis system—quickly identify and keep track of inspection locations by adding digital images of important information and surrounding areas
  • Find problems faster and easier with accurately identify potential issues by combining digital and IR images

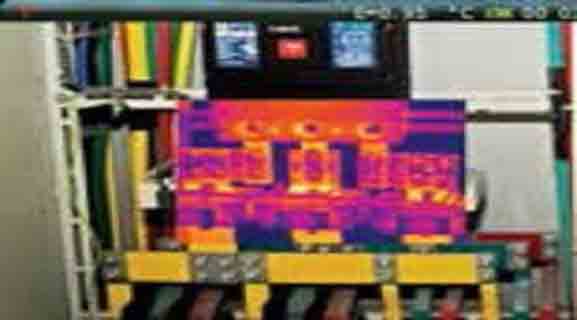

  • Picture in Picture function Displays thermal image super-imposed over a digital image
  • LED Flashlight allows the visual camera and fusion to be used in poorly lit environments

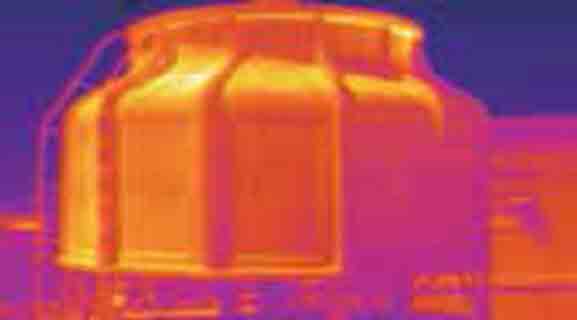

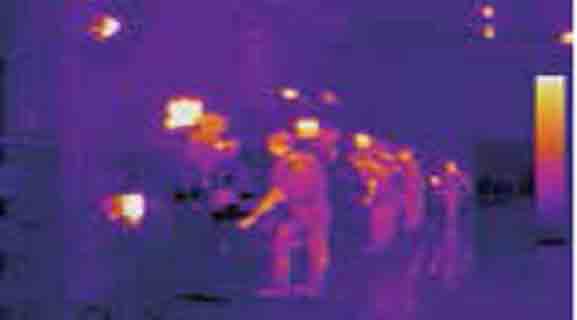

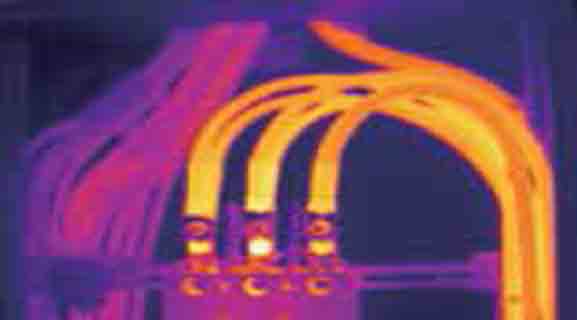

  • Wide Temperature Range from -20°to +400°C targeting electrical and industrial applications
  • ±2% Accuracy for reliable temperature measurement
  • The image rotation has the ability to automatically rotate the acti19ve image
  • Audio recorded with the video image acts a speaker to listen to audio recorded with the video image

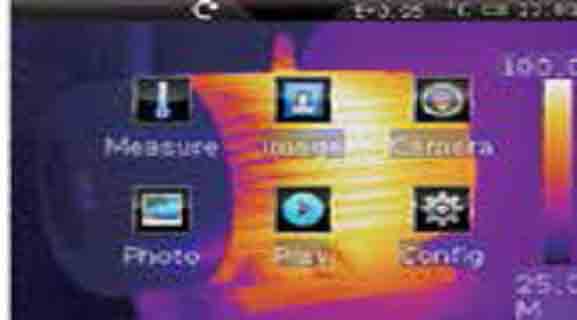

  • Capacitive touch screen is easier, productive and effective to operate it
  • Lithium polymer Rechargable Battery lasts >4hrs continuous use; replaceable
  • An easy-to-access thumbnail image gallery helps you to quickly review and find your thermal images.
  • Area (Min/Max) Mode shows the Minumum or the Maximum Temperature reading in the selected area
  • A conveniently located button activates the laser pointer that will help you associate the hot or cold spot in the thermal image with the real physical target in the field.
  • In order to adapt the device to every situation both wide angle and tele-lenses are available.

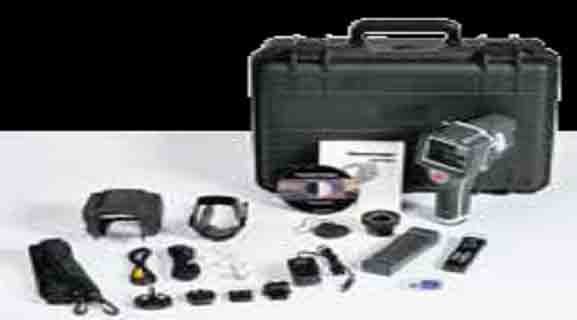

  • Equipped with standard video, USB outputs as well as a removable SD card.
  • The IR video can be streamed to a PC via USB or wifi (DT-9877 only).
