Thermal Imager DT 9875

Key features:

• 160x120 High Performance Thermal Imager with high resolution TFT color LCD display
• Professional IR-optical focus system ensures that images are in good focus for optimum image clarity and scanning convenience.
• Capture additional measurements fast and conveniently with wireless modules (9877 only)
• Meterbox analysis system—quickly identify and keep track of inspection locations by adding digital images of important information and surrounding areas
• Find problems faster and easier with accurately identify potential issues by combining digital and IR images

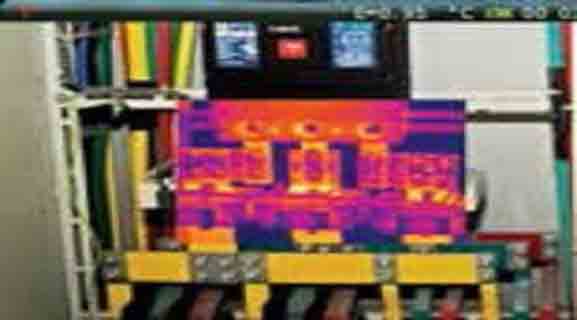

• Picture in Picture function Displays thermal image super-imposed over a digital image
• LED Flashlight allows the visual camera and fusion to be used in poorly lit environments

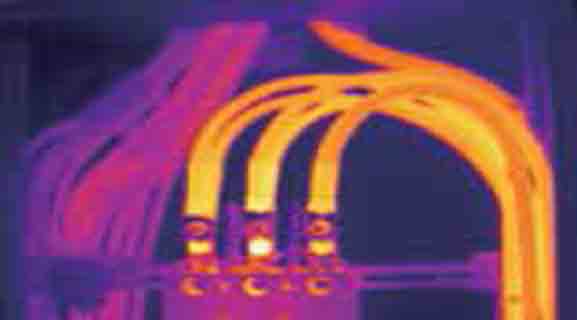

• Wide Temperature Range from -20°to +400°C targeting electrical and industrial applications
• ±2% Accuracy for reliable temperature measurement
• The image rotation has the ability to automatically rotate the acti19ve image
• Audio recorded with the video image acts a speaker to listen to audio recorded with the video image

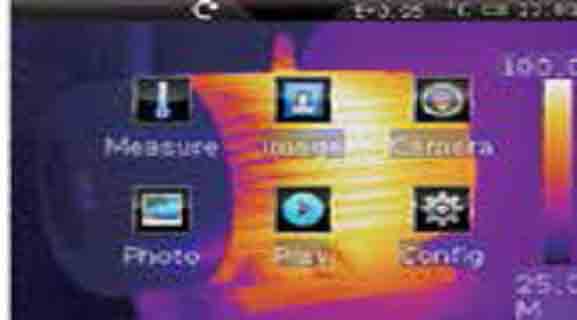

• Capacitive touch screen is easier, productive and effective to operate it
• Lithium polymer Rechargable Battery lasts >4hrs continuous use; replaceable
• An easy-to-access thumbnail image gallery helps you to quickly review and find your thermal images.
• Area (Min/Max) Mode shows the Minumum or the Maximum Temperature reading in the selected area
• A conveniently located button activates the laser pointer that will help you associate the hot or cold spot in the thermal image with the real physical target in the field.
• In order to adapt the device to every situation both wide angle and tele-lenses are available.
• Equipped with standard video, USB outputs as well as a removable SD card.
• The IR video can be streamed to a PC via USB or wifi (DT-9877 only).
