Other Multimeters & Clampmeters

Safety Conformance

• EN61010-1 CAT IV 600V, CAT III 1000V
• 1000V input protection on all ranges
• 10A/1000V & 0.8A/1000V fuses protection on current ranges

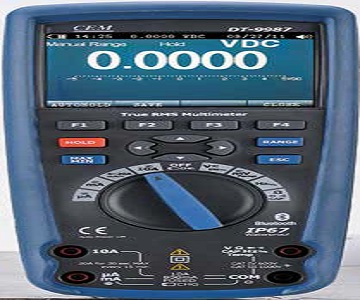

               Features

• Large 50,000 counts, Full Graphics Type LCD display with white backlight. Multiple sets of measurement information can simultaneously be displayed at the same time.
• Voltage (DC/AC), current(DC/AC), resistor, diode, capacitance, frequency and duty cycle measurement Ability to record data of signals and review Trend Capture curve, monitoring while you work on other project, It plots measurements as a single line to help detect signal anomalies over time; store up to 10,000 recorded events
• Log multiple sessions or log data continuously for over 200 hours.
• Real Time Clock – for automatic time stamping of saved readings
• Expandable meter lets you stay current as new capabilities are added
• Allow to save and name the measurements, and also recall them at any time
• Min/Max/Average with Time Stamp to record signal fluctuations
• Auto zeroing function
• Soft keys, scroll buttons much more secondary functions to access in easily
• TRMS AC voltage and current for accurate measurements on complex signals or non-linear loads.
• Measure up to 10A (20 A for 30 seconds; 10A continuous)
• Peak hold function with calibration mode
• 10MHz Frequency counter and 1MHz duty cycle measurement
• IP67 Waterproof and Auto Power Off
• Bluetooth interface
• Meterbox iMM & cloud service

Professional True RMS Industrial Digital Multimeters DT 9919

9919/9929/9939/9949/9959 are the new Professional Digital Multimeters which provide much more safe measurements with double molded plastic housing design and IP67 waterproof function. 9949/9959 performance like datalogger & True RMS AC voltage and current measurements, 50,000 counts resolution and a 0.03% basic DC accuracy within the reach of more customers. The large LCD display with analog bargraph and backlit ensure that readings are easy to read under all circumstances.All inputs are protected to EN 610101-1 CATIV 600V/CATIII 1000V

Safety Conformance

• EN61010-1 CAT IV 600V, CAT III 1000V
• 1000V input protection on all ranges
• 10A/1000V & 0.5A/1000V fuses protection on current ranges

Accessories:

• Test leads, 9V battery, Type K temperature probe, gift box
• with carrying case and Software (9959)
• USB cable and Software (9939)

Professional Digital Multimeters DT 9915

The seven models of the new 9915,9915T, 9916, 9917,9917T, 9918 and 9918T series are the new 4000 counts multimeters. They set the standard with a combination of precision, features, easy-to-use, safety and reliability.

9915T/9917T/9918T have True RMS AC Voltage, Current readings, as well as Frequency and Capacitance ranges.

                Safety Conformance

• EN61010-1 CAT IV 600V, CAT III 1000V
• 1000V input protection on all ranges
• 10A/1000V & 0.5A/1000V fuses
• protection on current ranges
• IP67 dust and water proof
• True RMS (9915T/9917T/9918T)

Accessories:

• Test leads and 9V battery,
• Type K temperature probe (9917/9918/9917T/9918T), gift box with carrying case.

Professional Digital Multimeters DT 9982T

The three models of 9926, 9927 & 9927T series are the new 6000 counts multimeters. They are a combination of precision, features, easy-to-use, safety and reliability. 9928/ 9928T series are the new 11,000 counts and 9938 is the new 22,000 counts multimeter. They are a combination of precision, features, easy-to -use, safety and reliability. 9927T/9928T has True RMS AC Voltage and Current readings, MAX-MIN recording.

Safety Conformance

• EN61010-1 CAT IV 600V, CAT III 1000V
• 1000V input protection on all ranges
• 10A/1000V & 0.5A/1000V fuses
• protection on current ranges

Accessories:

• Test leads, 9V battery.
• Type K temperature probe and gift box with
• carrying case

        Compact Digital Multimeters DT 920N

920/920L/921/922/920N/921N Series are compact multimeters with double molded plastic housing and over sized high contrast 2000/4000 counts LCD display. They’re all CAT III rated for 600V and have auto-ranging function and provide 0.5% basic DCV accuracy.

• 0.5% basic DC accuracy
• Double molded plastic housing
• Built-in Non-Contact AC Voltage Detector (920N/921N)

Safety Conformance

• EN61010-1 CATIII 600V
• Double molded plastic housing
• Full ranges protection

        Accessories:

• Test leads, 9V battery, type K temperature probe (921/921N/922) and gift box with carrying case.

6000 Counts Compact Digital Multimeters DT 930

930/931/932/931N/932N Series are compact meters with double molded plastic housing and over sized high contrast 6000 counts LCD display. They’re all CAT III rated for 600V

• True RMS (932/932N)
• 6000 counts LCD display
• Double molded plastic housing
• Built-in Non-Contact AC Voltage Detector (931N/932N)

Safety Conformance

• EN61010-1 CATIII 600V, CATII 1000V
• Double molded plastic housing
• Full ranges protection

Accessories:

• Test leads, 9V battery, type K temperature probe (931/931N/932/932N) and gift box with carrying case

DT-3260 Smart Pen-type Digital Multimeter

3260 is ideal for electrical trouble shooting, which can check components (resistance, capacitance, diode and continuity) and circuit fault. All inputs are protected to EN 610101-1 CATIII 600V

Safety Conformance

• EN61010-1 CAT III 600V, CAT II 1000V
• Full ranges protection

Features

• Automatic DCV or ACV selection, Capacitance, Resistance, Continuity and diode selection
• 6000 counts LCD display
• Auto/manual ranging
• Data Hold/MAX/MIN recording mode
• Auto Power Off
• Wide capacitance range
• Diode Check & Continuity Test

Specifications

• Function Max. Range Basic Accuracy
• Voltage DC 600V ±0.5%
• Voltage AC 600V ±1.0%
• Current DC 400mA ±1.0%
• Current AC 400mA ±1.5%
• Resistance 40MΩ ±1.0%
• Capacitance 40mF ±3.5%

Accessories:

• Clamshell and button battery

SMD-100 Smart Electronic Components Tester

SMD-100 has a changeable head for automatic scan check DC/AC Voltage, components (resistance, capacitance, diode and continuity) and circuit fault. All inputs are protected according to EN 610101-1 CATIII 600V.

Features

• Automatic DCV or ACV selection, Capacitance, Resistance, Continuity and diode selection
• 6000 counts LCD display
• Auto scan DC/AC Voltage, resistance, capacitance, diode and continuity
• Data Hold/MAX/MIN recording mode
• Auto Power Off
• Wide capacitance range
• Diode Check & Continuity Test

Function Range Basic Accuracy

• Voltage DC 600mV/6V/60V/600V ±0.8%
• Voltage AC 600mV/6V/60V/600V ±1.0%
• Resistance (Ω) 600/60k/60k/600k/6M/60M ±1.0%
• Capacitance (F) 6n/60n/600n/6μ/60μ/600μ/6m/60m ±3.5%
• Diode check Open voltage 2.8Vdc, test current 1mA.
• Continuity test Threshold 35 Ω
• Specifications

Accessories:

• Two LR44(1.5V) button batteries and clamshell

Intelligent Semiconductor Analyzer DT 155

The intelligent semiconductor Component analyzer offers great features together with refreshing simplicity

Features

• Automatic component type identification
• Automatic pinout identification, just connect any way round.
• Special feature identification such as diode protection and resistor shunts.
• Gain measurement for bipolar transistors.
• Leakage current measurement for bipolar transistors.
• Silicon and Germanium detection for bipolar transistors.
• Gate threshold measurement for Enhancement Mode MOSFETs.
• Semiconductor forward voltage measurement for diodes, LEDs and transistor Base-Emitter junctions.
• Automatic and manual power-off.

Accessories:

• Two “AAA” batteries and clamshell

DT-9935 Professional 9935 LCR Meter features with an innovative automatic selection technology, automatically measuring L,C and R with Q, D and θ by just turn on the meter.The testing frequency is up to 10kHz and it can output up to 100kHz test frequency. It provides high accuracy with four or five terminal Kelvin measurements.LCR Meter

• Overload Indication
• Lower Battery Indication
• Auto Power Off
• Double molded plastic housing

Specification Inductance

• Ranges 20uH-2000H
• Resolution 0.001uH
• Basic Accuracy ±(0.2+5d)
• Capacitance
• Ranges 20pF-20mF
• Resolution 0.001pF
• Basic Accuracy ±(0.2+3d)
• Resistance
• Ranges 20Ω-2000MΩ
• Resolution 0.001Ω
• Basic Accuracy ±(0.2+2d)
• DC Resistance
• Ranges 20Ω-2000MΩ
• Resolution 0.001Ω
• Basic Accuracy ±(0.2+2d)
• Q (quality)
• Ranges 0.000-999
• Resolution 0.001
• D (dissipation)
• Ranges 0.000-999
• Resolution 0.001
• Theta
• Ranges ±90 degree
• Resolution 1 degrees

Accessories:

• Test leads and 6 x 1.5V “AA” batteries, gift box with carrying case

6 in 1 Digital Multimeter with Environment Measurement DT 61

The model 61 is 6 in 1 Digital Multimeter with Environment Measurement. It has been designed

to combine the functions of Sound Level Meter, Light Meter, Humidity Meter, Temperature Meter & Non-contact AC voltage detector. The model 51 is without temperature (ºF) range. They are ideal Multifunction Environment & DMM Instruments with scores of practical applications for professional and home use. The Sound Level function can be used to measure noise in factories, schools, offices and home, etc, checking acoustics of studios, auditoriums and hi-fi installations. The Light function is used to measure illuminance in the field. It is fully cosine corrected for the angular incidence of light. The light sensitive component used in the meter is a very stable, long life silicon ciode.The Humidity/Temperature uses a humidity/semiconductor sensor and K type thermocouple. The DMM function include ACV, DCV, ACA, DCA Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity test and Non-contact AC voltage detector.

• 61 is 6 in 1 multifunction multimeter, including DMM, sound level meter, light meter, humidity meter, temperature meter and Non-contact AC voltage detector
• Safety design meets CAT III 1000V and CAT IV 600V
• Infrared Probe for Non-contact Temperature measurement (Optional IR-82)
• Double Molded Housing
• 4000 Counts digital LCD display with backlit
• Auto ranging
• Data Hold and Relative function
• Auto Power Off

Applications

• Plant/General Maintenance
• HVAC/R
• Transportation/Automotive
• Cooling and Reheating
• Serving areas
• Food service Equipment
• Cold storage

High Voltage Insulation Tester DT 6605

• Wide range measurements from 500V to 5000V and up to 60GΩ.
• Large 6000 counts digital display with bargraph and backlight.
• Polarization index measurement(PI).
• Auto ranging & Timer measurement function.
• Indication of output voltage and discharge voltage.
• Auto-discharge function and voltage output warning function.
• Auto power off and battery check.
• MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurments
• Safety standard IEC61010-1 CAT IV 600V

DT-902 Motor and Phase Rotation Indicator

The Motor and Phase Rotation Indicator is a handheld, battery-operated Instrument designed to detect the rotary field of three-phase system and determine motor-rotation direction.

• Determine rotary field direction
• Non-contact rotary field indication
• Determine the motor connection
• Magnetic field detection

Features

• Nominal voltage rotary direction 1V to 400V AC
• Nominal Voltage phase indirection 120V to 400V AC
• Frequency range 2 to 400Hz
• Test Current (per phase) < 3.5 mA
• Electrical safety DIN, VDE 0411, IEC61010 DIN;IEC61557-7/EN61557-7
• Protection level CATIII 600V
• Type of protection IP40
• Operating Altitude 2000m
• Operating temperature 0ºC to 40ºC

DT-175СVS/175CV1/176CV2/177CV3 AC Current and Voltage Dataloggers

The 175CVS is a datalogger for measuring and recording current and voltage.  The 175CV1/176CV2/177CV3 is a datalogger for measuring and recording True RMS current

and voltage. The readings are saved in the logger and simply read out by your PC via USB interface. The LCD can show current readings, MAX, MIN and alarm indication.

• Large capacity for storing measuring data points
• ACA current clamp sensor (CP-09)
• Voltage sensor measure the floating voltage to meet CAT III 600V
• LCD to show some logging information easily
• Freely selectable measurement cycle from 1sec. to 24h
• Download collected data through USB interface
• Alarm display if user-defined maximum/minimum values exceed
• Analysis software used to view graph for logging data

Accessories :

• ACA current clamp sensor(CP-09) & Voltage sensor, USB cable, Software, battery and gift box.

Cable Locator LA 1012

The cable locator is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purposemade carry case. The receiver also incorporates a torch function for working in dimly lit locations.

• For all applications (live or dead cables) without additional instruments
• Set includes a transmitter and a receiver
• Proven digitally coded sender signal guarantees clear signal identification
• Transmitter with LCD-display for transmitting level, transmitting code and external voltage
• Receiver with backlight LCD-display for level of receiving signal, code of receiving signal and live voltage indication
• Automatic or manual adjustment of receiving signal sensitivity
• Acoustical receiving signal switchable
• Auto Power Off
• Additional torch lamp function for working in dark environment
• Additional transmitters are available for extension of to distinguish between several signals

                Technical Specifications

• Voltage measurement range Transmitter: 12V, 50V, 120V, 230V, 400V
• Frequency range Transmitter: 0...60Hz
• Output signal Transmitter: 125kHz
• Voltage Transmitter: Up to 400V AC/DC
• Tracing depth cable location Receiver: 0...2.5 m wall/underground cables
• Main voltage detection Receiver: 0...0.4 m

Non-Contact detection of AC Voltage AC 8

The Non-contact AC Voltage Testers are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.

• Bright Flashlight
• CATIII 1000V
• Red LED light and audible
• beeper indicator (AC-9B)
• Motor Shaking and LED light (AC-9C)
• Suitable for outlets or against wire insulation testing
• Flashing red LED light indicator
• Built-in bright flashlight with ON/OFF button
• Convenient size with pocket clip
• Green light means you’re close the voltage(AC-10/AC-10+)
• Red LED light and audible beeper indicator(AC-9B/AC-10/AC-10+)
• Motor Shaking and LED light (AC-9C)

Features (AC-10+)

• Safe CAT IV-1000V rating and toolbox tough with rubber reinforced case and buttons and low-profile detection tip
• Vibration and red LED alarms alert users to the presence of voltage in noisy areas
• Versatile High/Low sensitivity modes detect voltage on industrial equipment and low-voltage installations
• Powerful LED worklight always ready to illuminate poorly lit locations
• Inspection light at the probe tip facilitates testing in dark areas
• IP67 Waterproof

2 in 1 LAN Tester & Multimeter LA 1011

The tester is a designed and very practical tester that can easily read the correct pin configuration of 10 Base -T cable(Category 5), 10 Base-2 cable (coax), RJ45/RJ11 moduler cables, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit it can test cables installed far away either on wall plate or patch panel. It is easy to verify the cable continuity, open, short and crossconnect.

It is affordable, so you can benefit the most.

• Test the correct pin configuration of 10 Base-T 10 Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA-568A/568B and Token Ring cable etc.
• With remote kit it can remotely test cables up to 300 m away either on the wall plate or patch panel.
• Test the ground wire
• Measures DC/AC Voltage, DC/AC Current, Resistance, Continuity & diode

Specifications

• Function Max Range Basic Accuracy
• Voltage DC 600V ±0.5%
• Voltage AC 600V ±1.2%
• Current DC 200mA ±1.5%
• Current AC 200mA ±2.0%
• Resistance 20MΩ ±0.8%
• Continuity Test Beep if less than 100Ω

Accessories:

• 9V battery and Two “AAA” batteries, remote terminator, holster, cables, test leads, gift box with carrying case

Compact AC, AC/DC Autoranging Clamp Meters DT 360

The 360 series clamp meters offer all needed features for measurement. It with small bodies and jaws design for perfectly handhold and tight place testing. A large backlit display (on most models) is easy to see and a handy Display Hold keeps measurements on the display. Measuring starting current for motors, lighting, etc. is easy with the inrush current function (366 only).

• Double molded plastic housing
• Inrush current function (366 only)
• Auto Power Off

Accessories:

• Test leads, gift box with carrying case, Temperature probe(361,362, 363, 366 only) and 9V battery

3 in 1 Mini AC, AC/DC Clamp Meters FC 32

The FC-31/32/33 Series are designed to verify the presence of load current, Non-contact Voltage and Flashlight, etc. The small bodies and jaws fit perfectly in your hand and a large backlit display is easy to read.

Accessories:

• Clamshell with carrying case and Two “AAA”1.5V batteries

True RMS 1000A AC Watt Clamp Meter DT 3353

3353 Professional True RMS 1000A AC Watt Clamp Meter provides accurate Watt, AC Current and Voltage readings regardless of waveforms

                Feature

• Analysis for Single Phase and Balanced 3 phase system
• True RMS Value (Voltage and Current)
• Large LCD Display with Backlight
• USB interface
• 4 digits with dual display LCD
• MIN / MAX measurement
• True power / apparent power / power factor measurement
• Data Hold
• Auto Ranging
• Overflow Indication
• Auto Power Off
• Manual Data Memory and Read (99 sets)
• NCV Detection
• 2.16” (55mm) Jaw opening

AC Leakage Current Tester DT 9809

AC leakage current tester 9809 is a multifunction clamp meter with very good resolution of 10uA. It is very useful for power system check and installation. With the measuring range up to 100A, this tester is great for appliance installation or for car applications

• 10uA high resolution
• Large 33/4 (4000 counts) LCD display
• Auto Power Off
• Shielded transformer jaw opens to 1.2”
• Max/Min, Data Hold, Low battery indication
• Overload protection

Specifications

• Function Range Resolution Basic Accuracy
• Current AC 40mA~100A 10uA~100mA ±(2.0%+3d)
• Voltage AC 400V 0.1V ±(1.5%+10d)
• Resistance 40~400Ω 0.1Ω ±(1.0%+2d)
• Continuity Test Threshold 40Ω, Continuity Beeper 2.5KHz
• 1.2” (30mm) Clamp jaw opening

1000A AC Leakage Current Tester DT 9812

                Features

• Large tranceformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.
• Frequency filter switch to eliminate the effect of the harmonics.
• Measurement from mA up to AC 1000A
• True RMS enables an accurate measurement for distorted waveforms.
• Peak hold function
• Data hold function: Allows for easy reading in dimly light or hard-to-reach locations
• Large LCD display with backlight
• International safety standard IEC61010-1 CAT.III 600V

Accessories:

• Gift box with carrying case and 9V battery, Test leads

CP-09 Smaller sized , convenient-to-use AC current clamp-on Adaptor

CP-09 is the ideal tool to extend the current ranges for all Multimeters. The CP-09 is a 200A AC current clamp-on Adaptor with voltage output via a standard banana inputs to be connected to multimeters

Specifications

• Function Range Output Sensitivity Basic Accuracy
• Current AC 200A 1mV/A 1A/mV AC ±2%
• 0.7” (18mm) Clamp jaw opening

Accessories:

• Test leads and clamshell

CP-10/11 High Resolution Mini AC/DC Clamp-on Adaptors

The CP-10/11 are compatible with any Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device.

• 0.5” (12.5mm) Clamp jaw opening (CP-10)
• 0.9” (23mm) Clamp jaw opening (CP-11)

Accessories:

• Test leads, gift box with carrying case and 9V battery
